    Product Description
    Oil in water online analyzer (UV fluorescence)
      The on-line analyzer for oil in water consists of an immersion sensor and a multifunctional display. High precision immersion probe is used to measure oil substances in water, and ultraviolet fluorescence technology is adopted. Suitable for surface water oil pollution monitoring, industrial process control, oil leakage detection and other water quality on-line monitoring and other occasions.

    The device uses ultraviolet fluorescence to measure the concentration of oil in water, andemits light with a wavelength of 254nm through an LED light sourceto illuminate the water body, and measures it by projection or scattering.

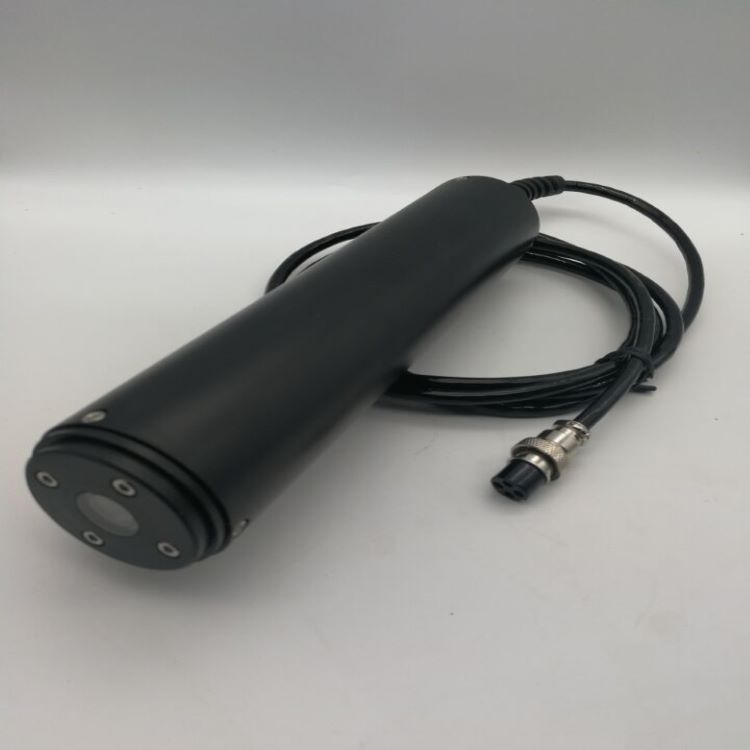

    Oil in water online sensor
      The on-line analyzer for oil in water consists of a high-precision miniature immersion sensor and a multifunctional display. High precision immersion probes are used to measure oils in water, sensitive to specific hydrocarbons such as polycyclic aromatic hydrocarbons (PAHs). The instrument is suitable for scientific research, pollution source emission control, industrial process control, oil leakage detection and other on-line water quality monitoring.

    The equipment adopts fluorescence method to measure the concentration of oil in water. The xenon lamp light source emitslight with wavelength of 254nm to irradiate the water body, so as to excite the oil in water to produce fluorescence with specific wavelength and measure the concentration of oil in water.
    The solubility of various aromatic hydrocarbons in water is measured by fluorescence in clean water, including:EPA-PAH(benzene, anthracene, naphthalene and their compounds),aromatic hydrocarbons (alkanes, alkenes, phenols and their compounds), petroleum, gasoline, kerosene, diesel, heavy fuels, lubricating oils.
    Technical Features:
    • High sensitivity, fast response, stable and reliable;
    • Range optional, automatic daylight compensation;
    • Low power consumption, easy operation and maintenance;
    • Integrated sensor design, can be applied to 50meters of water depth measurement environment;
    Technical specifications of online analyzer for oil in water
    project index
    light source LEDlamp with interference filter
    light source wavelength 254nm
    absorption spectrum wavelength 254nm
    range 0-5mg/l,0-10mg/l，0-100mg/l(PPM)
    sensitivity 0.001mg/l
    LOD (limit of detection) 0.001mg/l
    Sensor protection class IP68
    environmental requirements -10~60℃，20%~90%RH
    weight 0.5kg
    Sensorsize ∅48×220mm
    output 4-20mA, standardMODBUS 485

    Instrument parameters:
    Display   : 12864× dot matrix LCD, Chinese display;
    Measurement accuracy:± 1.0% F.S;
    Resolution:0.01 mg/L(0-20.00) mg/L; Ammonia nitrogen 0.1 mg/l
    Stability:≤ 1%;
    Response time: T 90< 5min(25 ℃), generally< 60s;
    Temperature sensor:pt100;
    Temperature measurement range: (0.0-99.9) ℃;
    Temperature compensation range:(0.1-60.0) ℃;
    Water sample temperature: (5-60) ℃;
    Ambient temperature: (5-45) ℃;
    Ambient humidity:≤ 90%RH;
    Power    supply:AC (220± 22) V  or 12VDC, 24 VDC
    Power   : <5W;
    Appearance size: 240 mm× 200 mm× 108 mm;
    Weight   :      1 kg;
    Control signal:    1 channel dry contact switching output, built-in upper and lower limit settings, can set the equipment address
    Protection class:     IP65;
    Output: 1 channel standard modbus protocol  485 signal    1 channel 4-20mA
    Instrument installation mode: wall-mounted, hanging rack
    Electrode installation method:  sunken electrical interface G3/4 thread    or pipeline M60 thread
